Get Started with LCEL

LangChain Expression Language, or LCEL, is a declarative way to easily compose chains together. LCEL was designed from day 1 to support putting prototypes in production, with no code changes, from the simplest “prompt + LLM” chain to the most complex chains (we’ve seen folks successfully run LCEL chains with 100s of steps in production). To highlight a few of the reasons you might want to use LCEL:

  • First-class streaming support: When you build your chains with LCEL you get the best possible time-to-first-token (time elapsed until the first chunk of output comes out). For some chains this means eg. we stream tokens straight from an LLM to a streaming output parser, and you get back parsed, incremental chunks of output at the same rate as the LLM provider outputs the raw tokens.
  • Optimized concurrent execution: Whenever your LCEL chains have steps that can be executed concurrently (eg if you fetch documents from multiple retrievers) we automatically do it for the smallest possible latency.
  • Retries and fallbacks: Configure retries and fallbacks for any part of your LCEL chain. This is a great way to make your chains more reliable at scale.
  • Access intermediate results: For more complex chains it’s often very useful to access the results of intermediate steps even before the final output is produced. This can be used to let end-users know something is happening, or even just to debug your chain.

LCEL makes it easy to build complex chains from basic components, and supports out of the box functionality such as streaming, parallelism, and logging.

Basic example: prompt + model + output parser

The most basic and common use case is chaining a prompt template and a model together. To see how this works, let’s create a chain that takes a topic and generates a joke:

final openaiApiKey = Platform.environment['OPENAI_API_KEY'];

final promptTemplate = ChatPromptTemplate.fromTemplate(
'Tell me a joke about {topic}',
);
final model = ChatOpenAI(apiKey: openaiApiKey);
const outputParser = StringOutputParser<ChatResult>();

final chain = promptTemplate.pipe(model).pipe(outputParser);

final res = await chain.invoke({'topic': 'ice cream'});
print(res);
// Why did the ice cream truck break down?
// Because it had too many "scoops"!

Notice this line of this code, where we piece together then different components into a single chain using LCEL:

final chain = promptTemplate.pipe(model).pipe(outputParser);

The .pipe() method (or | operator) is similar to a unix pipe operator, which chains together the different components feeds the output from one component as input into the next component.

In this chain the user input is passed to the prompt template, then the prompt template output is passed to the model, then the model output is passed to the output parser. Let’s take a look at each component individually to really understand what’s going on.

1. Prompt

promptTemplate is a BasePromptTemplate, which means it takes in a map of template variables and produces a PromptValue. A PromptValue is a wrapper around a completed prompt that can be passed to either an LLM (which takes a string as input) or ChatModel (which takes a sequence of messages as input). It can work with either language model type because it defines logic both for producing ChatMessage and for producing a string.

final promptValue = await promptTemplate.invoke({'topic': 'ice cream'});

final messages = promptValue.toChatMessages();
print(messages);
// [HumanChatMessage{
// content: ChatMessageContentText{
// text: Tell me a joke about ice cream,
// },
// }]

final string = promptValue.toString();
print(string);
// Human: Tell me a joke about ice cream

2. Model

The PromptValue is then passed to model. In this case our model is a ChatModel, meaning it will output a ChatMessage.

final chatOutput = await model.invoke(promptValue);
print(chatOutput.output);
// AIChatMessage{
// content: Why did the ice cream truck break down?
// Because it couldn't make it over the rocky road!,
// }

If our model was an LLM, it would output a String.

final llm = OpenAI(apiKey: openaiApiKey);
final llmOutput = await llm.invoke(promptValue);
print(llmOutput.output);
// Why did the ice cream go to therapy?
// Because it had a rocky road!

3. Output parser

And lastly we pass our model output to the outputParser, which is a BaseOutputParser meaning it takes either a String or a ChatMessage as input. The StringOutputParser specifically simple converts any input into a String.

final parsed = await outputParser.invoke(chatOutput);
print(parsed);
// Why did the ice cream go to therapy?
// Because it had a rocky road!

4. Entire Pipeline

To follow the steps along:

  1. We pass in user input on the desired topic as {'topic': 'ice cream'}
  2. The promptTemplate component takes the user input, which is then used to construct a PromptValue after using the topic to construct the prompt.
  3. The model component takes the generated prompt, and passes into the OpenAI chat model for evaluation. The generated output from the model is a ChatMessage object (specifically an AIChatMessage).
  4. Finally, the outputParser component takes in a ChatMessage, and transforms this into a String, which is returned from the invoke method.

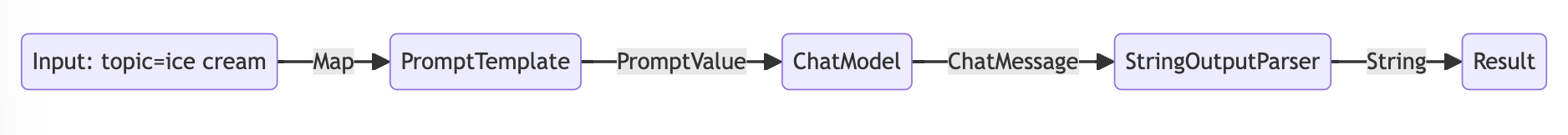

Pipeline

Note that if you’re curious about the output of any components, you can always test out a smaller version of the chain such as promptTemplate or promptTemplate.pipe(model) to see the intermediate results.

final input = {'topic': 'ice cream'};

final res1 = await promptTemplate.invoke(input);
print(res1.toChatMessages());
// [HumanChatMessage{
// content: ChatMessageContentText{
// text: Tell me a joke about ice cream,
// },
// }]

final res2 = await promptTemplate.pipe(model).invoke(input);
print(res2);
// ChatResult{
// id: chatcmpl-9J37Tnjm1dGUXqXBF98k7jfexATZW,
// output: AIChatMessage{
// content: Why did the ice cream cone go to therapy? Because it had too many sprinkles of emotional issues!,
// },
// finishReason: FinishReason.stop,
// metadata: {
// model: gpt-4o-mini,
// created: 1714327251,
// system_fingerprint: fp_3b956da36b
// },
// usage: LanguageModelUsage{
// promptTokens: 14,
// promptBillableCharacters: null,
// responseTokens: 21,
// responseBillableCharacters: null,
// totalTokens: 35
// },
// streaming: false
// }

RAG Search Example

For our next example, we want to run a retrieval-augmented generation chain to add some context when responding to questions.

// 1. Create a vector store and add documents to it
final vectorStore = MemoryVectorStore(
embeddings: OpenAIEmbeddings(apiKey: openaiApiKey),
);
await vectorStore.addDocuments(
documents: [
Document(pageContent: 'LangChain was created by Harrison'),
Document(pageContent: 'David ported LangChain to Dart in LangChain.dart'),
],
);

// 2. Define the retrieval chain
final retriever = vectorStore.asRetriever();
final setupAndRetrieval = Runnable.fromMap<String>({
'context': retriever.pipe(
Runnable.mapInput((docs) => docs.map((d) => d.pageContent).join('\n')),
),
'question': Runnable.passthrough(),
});

// 3. Construct a RAG prompt template
final promptTemplate = ChatPromptTemplate.fromTemplates([
(ChatMessageType.system, 'Answer the question based on only the following context:\n{context}'),
(ChatMessageType.human, '{question}'),
]);

// 4. Define the final chain
final model = ChatOpenAI(apiKey: openaiApiKey);
const outputParser = StringOutputParser<ChatResult>();
final chain = setupAndRetrieval
.pipe(promptTemplate)
.pipe(model)
.pipe(outputParser);

// 5. Run the pipeline
final res = await chain.invoke('Who created LangChain.dart?');
print(res);
// David created LangChain.dart

In this case, the composed chain is:

final chain = setupAndRetrieval
.pipe(promptTemplate)
.pipe(model)
.pipe(outputParser);

To explain this, we first can see that the prompt template above takes in context and question as values to be substituted in the prompt. Before building the prompt template, we want to retrieve relevant documents to the search and include them as part of the context.

As a preliminary step, we’ve set up the retriever using an in memory store, which can retrieve documents based on a query. This is a runnable component as well that can be chained together with other components, but you can also try to run it separately:

final res1 = await retriever.invoke('Who created LangChain.dart?');
print(res1);
// [Document{pageContent: David ported LangChain to Dart in LangChain.dart},
// Document{pageContent: LangChain was created by Harrison, metadata: {}}]

We then use the RunnableMap to prepare the expected inputs into the prompt by using a string containing the combined retrieved documents as well as the original user question, using the retriever for document search, a RunnableMapInput to combine the documents and RunnablePassthrough to pass the user's question:

final setupAndRetrieval = Runnable.fromMap<String>({
'context': retriever.pipe(
Runnable.mapInput((docs) => docs.map((d) => d.pageContent).join('\n')),
),
'question': Runnable.passthrough(),
});

To review, the complete chain is:

final chain = setupAndRetrieval
.pipe(promptTemplate)
.pipe(model)
.pipe(outputParser);

With the flow being:

  1. The first steps create a RunnableMap object with two entries. The first entry, context will include the combined document results fetched by the retriever. The second entry, question will contain the user’s original question. To pass on the question, we use RunnablePassthrough to copy this entry.
  2. Feed the map from the step above to the promptTemplate component. It then takes the user input which is question as well as the retrieved documents which is context to construct a prompt and output a PromptValue.
  3. The model component takes the generated prompt, and passes into the OpenAI LLM model for evaluation. The generated output from the model is a ChatResult object.
  4. Finally, the outputParser component takes in the ChatResult, and transforms this into a Dart String, which is returned from the invoke method.

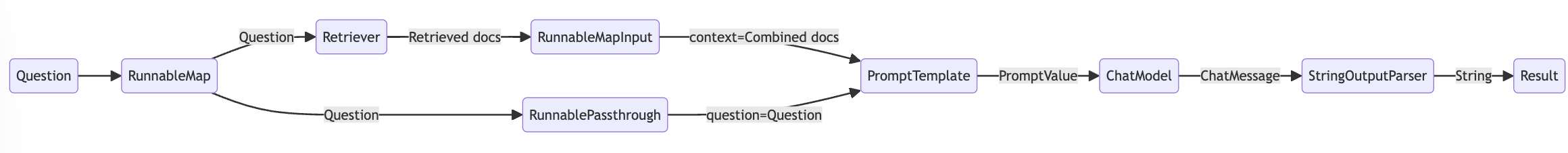

RAG Pipeline
